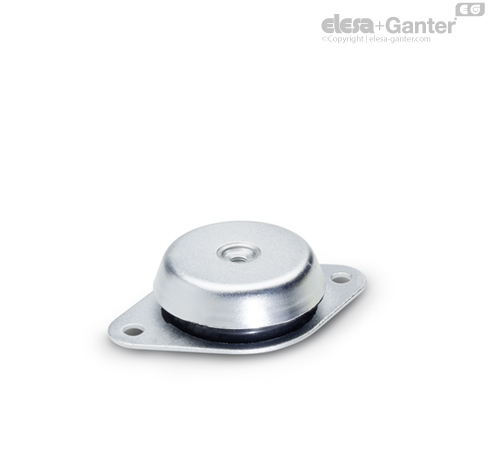

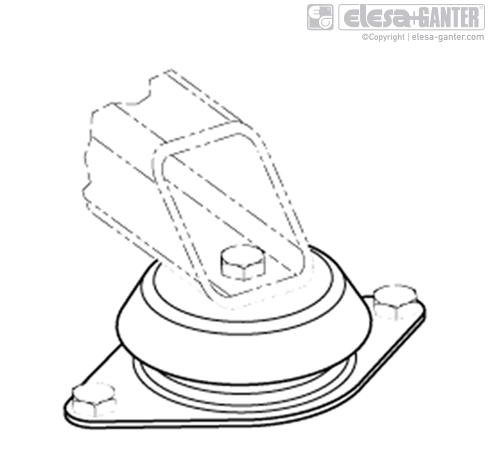

GN 148-A Izravnalne noge with two-hole flange

Levelling feet GN 148 are designed for setting up heavy machinery and units with insulation against vibrations.

This has a positive impact on the lifetime of machines and additionally reduces the noise pollution.

The structure is such that horizontal forces are also absorbed. The design with tear-off lock (Type 2) protects the levelling feet from destruction caused by tear-off under excessive tension loads.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.

• Rubber pads GN 148.2

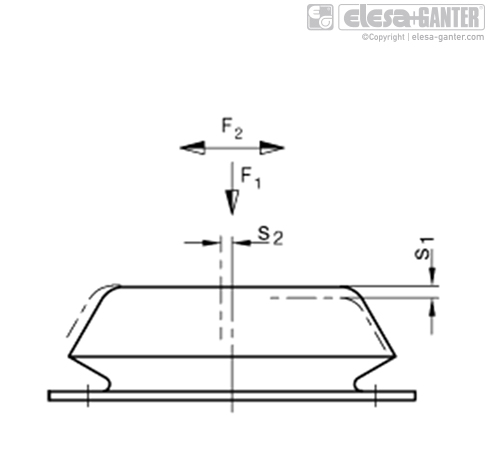

F₁ = static load in vertical direction (pressure)

F₂ = static load in horizontal direction (lateral thrust)

s₁ = Compression in vertical direction (spring excursion) under load thorugh F₁

s₂ = Compression in vertical direction (spring excursion) under load through F₂

Stiffness R:

is the load which causes the damping elements to be compressed by 1 mm (spring rate)

The table below gives details on the maximum static load F, the maximum rated compression and the resulting stiffness R.

The method shown and the values given below allow the maximum degree of insulation of the vibration to be determined as a factor of the interfence frequency.

Terms

Interference frequency [Hz]:

is the frequency emanating from a machine, e.g. the

machine main shaft speed [rpm].

Static load F [N]:

is the load acting on each vibration-damping element (levelling foot).

Degree of insulation [%]:

is the measure for absorbing the interference frequency (damping).

Compression s [mm]:

is the change in height of the damping element (spring excursion).

Stiffness R [N/mm]:

is the load which causes a damping element to be

compressed by 1 mm (spring rate).



Determining the suitable levelling foot and the maximum degree of insulation

Once the static load F has been calculated, select a levelling foot from the table. Please note that the static load F should be as close as possible to the static load capacity, but without exceeding it. The associated stiffness R of the selected leg is also shown in the table.

The actual compression is then calculated using the equation below.

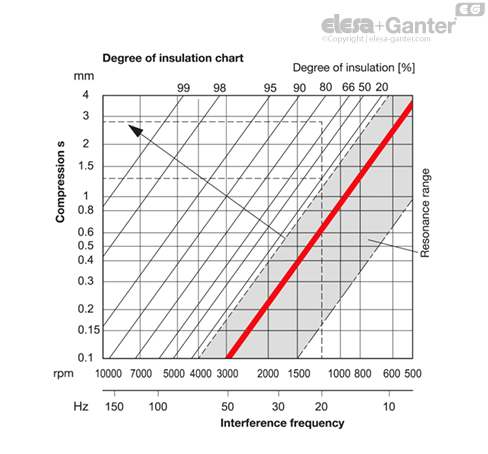

Starting from the actual compression s calculated, the maximum degree of insulation as factor of the interference frequency can now be read in the above chart.

To optimise the maximum degree of insulation, change the number of feet such that the static load F of each levelling foot is as close as possible below a static load capacity value given in the table. This will increase the compression s which, in turn, improves the degree of insulation.

In general, medium and high frequencies can be very well insulated with an adequate compression.
