Izvedba
- A: montaža z zadnje strani (slepa luknja z navojem)
- B: montaža z upravljalne strani
Aluminij
- s prevleko iz umetne mase
- črna, RAL 9005, teksturirano mat SW
- eloksirano, naravne barve EL
Umetna masa, poliamid (PA)
Črna, matirano
Komplet za pritrditev za obliko B
Jeklo, pocinkano
- Socket cap screws ISO 4762-M8x75
- Šestkotne matice ISO 4032-M8
Informacije
Tubular handles GN 669 offer the the advantage of high stability due to the connection of handle tube / handle leg.
The screws of type B (mounting from operator‘s side) are shrouded.

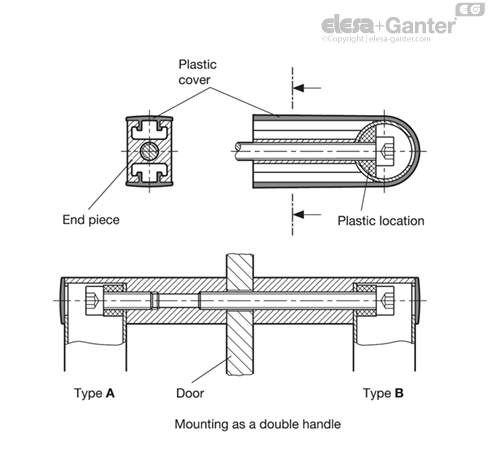

Mounting information
When mounting from the operator‘s side (Type B) the plastic cover is supplied loose. Once the handle has been mounted this cover is pushed over the end of the handle tube and the end piece until it snaps into the end of the groove at the tube end.
Both mounting methods (Type A and B) allow the mounting of a pair of handles in opposite position. This method could be used on doors (double handle). Depending on the door thickness longer socket cap screws ISO 4762 might be required.
