Izvedba
Oblika
- Type SK: with thrust point, hardened (only in steel, blackened)
- Type SKN: with thrust point, not hardened
Jeklo
Tensile strength class 5.8
blackened
Thrust point hardened (Type SK)
Thrust point not hardened (Type SKN)
zinc plated, blue passivated ZB
Thrust point not hardened (Type SKN)
Stainless Steel AISI 304 NI
Thrust point not hardened (Type SKN)
Informacije

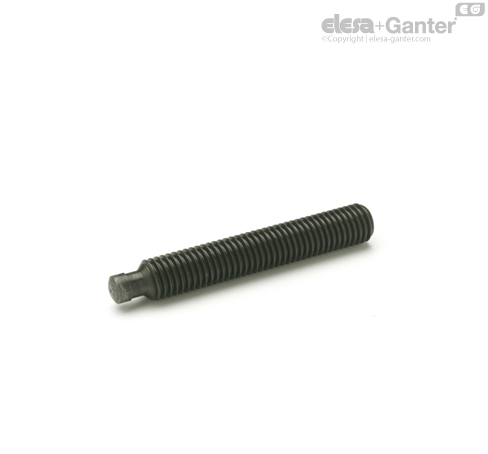

The thrust point of the grub screws DIN 6332 is designed to be used with or without the thrust pad for clamping.
The pin diameter of the grub screws is smaller than the core diameter of the thread, allowing them to be screwed in on the pin side.
The snap ring resp. snap spring of the thrust pad is a simple and quick method to connect the thrust pad to the grub screw.
