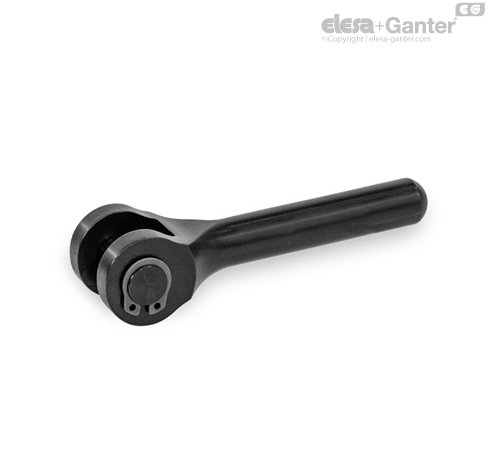

Spiral cam levers GN 9027 are used to quickly clamp fixture and machine components with high clamping forces, independent of the direction of the lever. The pitch of the double-sided clamping spiral creates a self-locking effect.
Due to the robust design, the lever can be extended by attaching a tube or brought into the desired clamping position by using a soft-face hammer. No torque is applied to the clamping screw or the clamping point during the clamping operation.
When combined with swing bolts DIN 444 , the spiral cam levers are suitable for many different applications. The contact plate of type B prevents damage to the clamping surface. The clamping mechanism can be lubricated for easier operation.
