GN 714

Stranski pritisni elementi/držala pritisnih elementov

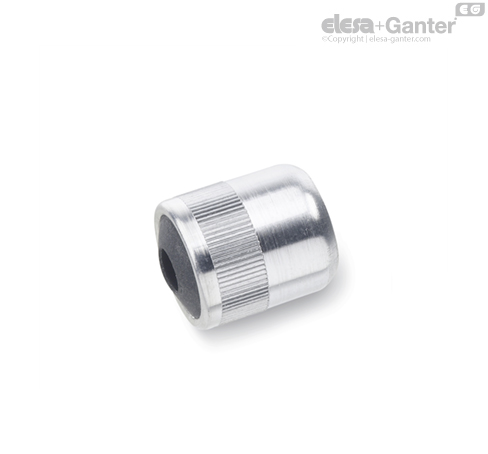

Side thrust pins GN 714 are the result of further development of GN 715 It is left to the customer to design his own pressure pin which can be screwed into the thrust plate.

This design extends the field of applications for side thrust pins offering identical advantages i.e. they eliminate costly alternatives, are space saving and are simple to install. The knurled body requires bore to H8 tolerance only.

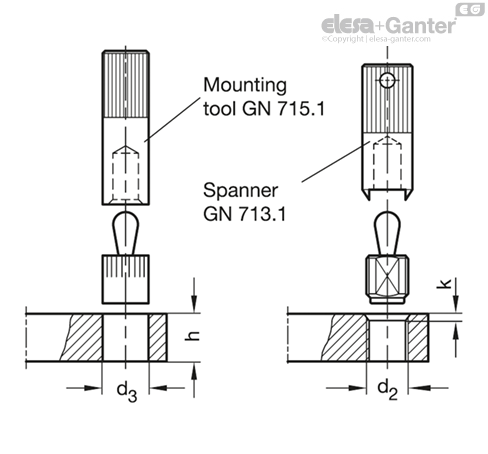

For easy mounting a suitable tool GN 715.1 is available (see table).

• Mounting tools GN 715.1 (Code no. see table)

• ISO-Fundamental Tolerances -

• Elastomer characteristics

w = Movement of pin

F = Side thrust in N

initial thrust = F₀

end thrust = 1.1 x F₀

a₂-a₁ = Clamping range for workpiece

x = distance centre line – thrust point at w₂

x₁ for highest thrust point (a₁)

x₂ for lowest thrust point (a₂)

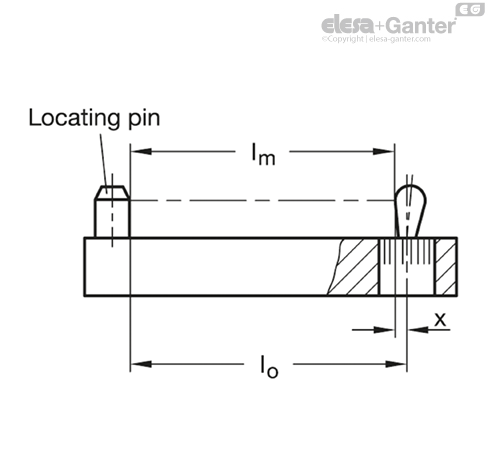

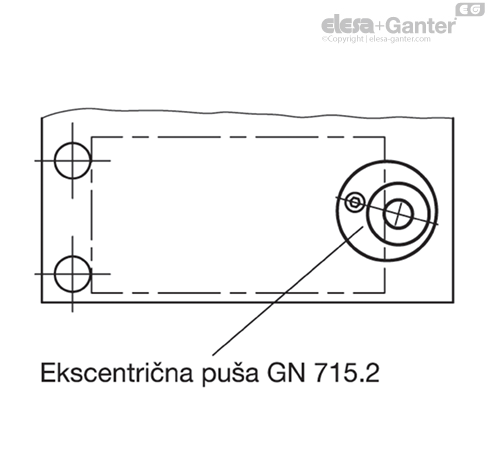

l₀ = Distance end stop – bore of thrust bush

l₀ = l_m + x

l_m = Average length of workpiece l_max. + l_min./2

For contact points (workpiece height) between a₁ and

a₂ a value for x has to be used lying between x₁ and

x₂ (interpolation).
