Izvedba
Zatič
Plemenito jeklo 1.4305
Gumb
Plastic Technopolymer (Polyamide PA)
- temperature resistant up to 80 °C
Kroglica
Stainless Steel AISI 420C
Vzmetni
Stainless Steel AISI 631
Informacije

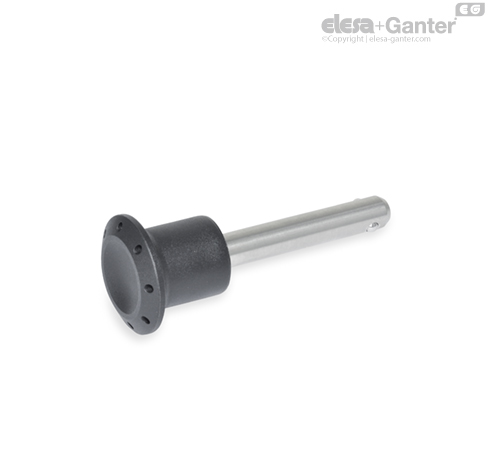

GN 124.2 Stainless Steel-Locking pins are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.
The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
This standard replaces the previous Stainless Steel-Locking pins GN 124.
