Specification
Types
- Type L: Steel, standard spring load
- Type LS: Steel, high spring load

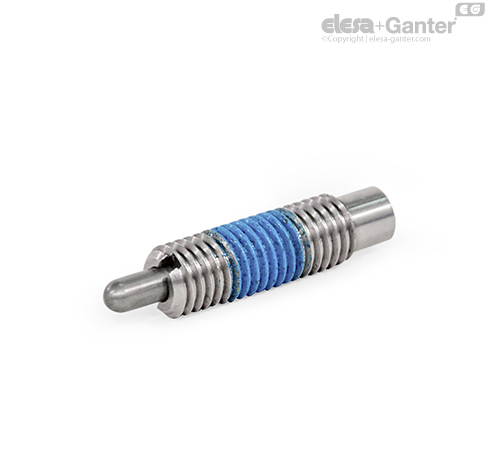

- Type LN: Stainless steel, standard spring load

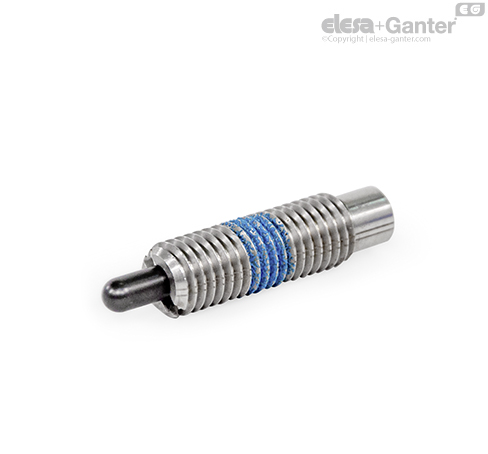

- Type LSN: Stainless steel, high spring load
Type L / LS
Housing
Steel, blackened
Bolt
Steel, blackened
Case hardened
Type LN / LSN
Housing
Stainless steel AISI 303
Bolt
Stainless steel AISI 303
Nitrided
Pressure spring
Steel
Identification of type LS / LSN:
Housing with 2 longitudinal markings
Information
Spring plungers GN 611 are used as ejectors, push-on and push-off operations in the sheet metal industry, as well as cushioners.
The slot on the plunger side is provided for blind hole application. A special screw driver GN 611.5 is available (see table).
