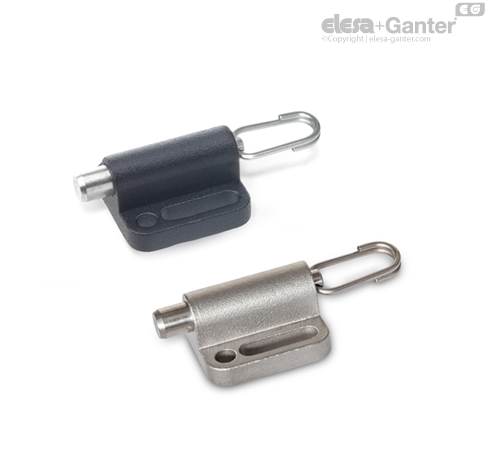

GN 417-D Zaskočni sorniki With wire loop

Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots.

Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°Indexing. A notch keeps the plunger in this position.

Type D has a reinforced wire loop, making it especially suited for remote actuation, e.g. by Bowden cable.

The stainless steel versions allow the indexing plungers to be used in more aggressive environments.
