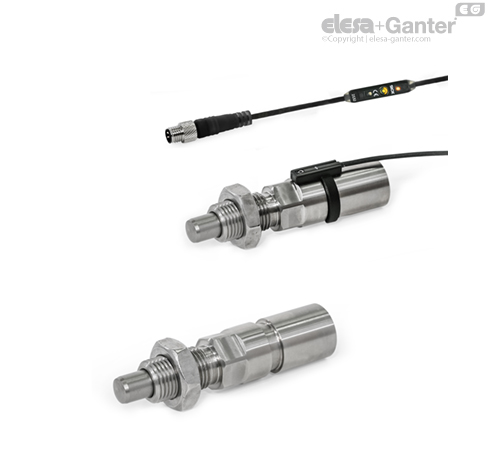

GN 817.7-E Zaskočni sorniki Pneumatically single-acting, protrude by spring force

Indexing plungers GN 817.7 with pneumatic operation can be easily and securely integrated into automated processes and can be positioned at locations where hand operation of the indexing plunger is not possible. Thanks to the material used, the indexing plungers are also suitable for more aggressive environments.

An integrated magnet allows the plunger pin position to be queried electronically by a sensor. The end limits (protruding and retracted position) are taught-in via the operating element on the sensor cable. They each send a high signal, which is indicated by the respective LED and can be processed by a machine control, for example.

The sensor electronics can also be accessed via IO-Link and offer the ability to set and read out the switching points and to block the teach button on the operating element. To avoid interference, no external magnetic fields should act on the indexing plunger. The pneumatic indexing plungers are supplied with a lock nut. With coding BS0,4, the sensor, sensor clip and an allen wrench are also supplied loose.

• Range of indexing plungers

• Cable with Connector GN 330

• IO-Link Device Description File

• Sensor Starting Operation

• IP Protection Classes

• ISO-Fundamental Tolerances

• Elastomer Characteristics

• Stainless Steel Characteristics



The radial position of the sensor cable can be freely determined when installing the sensor clip.

Installation steps:

1. Insert the sensor into the sensor clip from the side.

2. Tighten the hexagon socket screw of the sensor.

3. Clip the sensor clip into the ring groove of the indexing plunger and then adjust the position by turning, if necessary.

4. During commissioning, teach the sensor to the end positions via the operating element or IO-Link in accordance with the operating instructions supplied with the sensor.
