Specification
Types
Identification no.
- No. 4: With 2 stainless steel cap nuts DIN 917
Stainless steel AISI CF-8
Matte shot-blasted
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / washers
Stainless steel
Plastic (Polyacetal POM)
Silicon, 40 ... 60 Shore A
Information
The clamping bores of two-way connector clamps GN 132.5 are mechanically machined and designed for construction tubes GN 990 (see page or DIN 2391, DIN 2395 and DIN 2462 respectively.

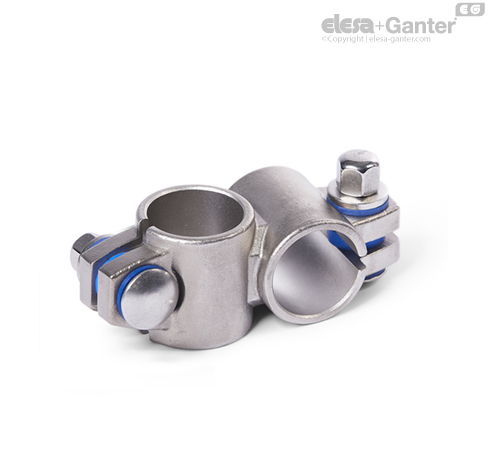

At the screw locations z, carriage bolts and cap nuts reduce the bore cross-section for clamping. Type B is equipped with seals at the screw locations.
For clamping without tools, the cap nuts can be replaced by adjustable hand levers GN 911.3 listed in the table as accessories.
