Specification
Identification no.
No. 2: With stainless steel socket cap screw DIN 912
black, RAL 9005, textured finish SW
- Plain, matte shot-blasted BL
Stainless steel AISI CF-8 NI
Matte shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Information

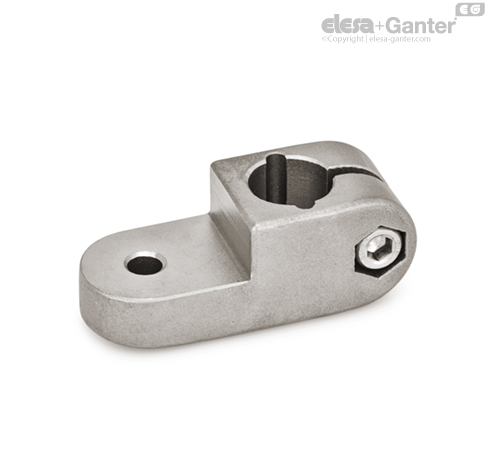

The clamping bore of swivel clamp connectors GN 273 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping. For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 /GN 911.3 listed in the table as accessory.
Swivel clamp connectors GN 273 can be combined with swivel clamp connectors GN 271 , GN 275 or GN 277 to swivel clamp connector joints.
