Izvedba
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Standardne izvedbe

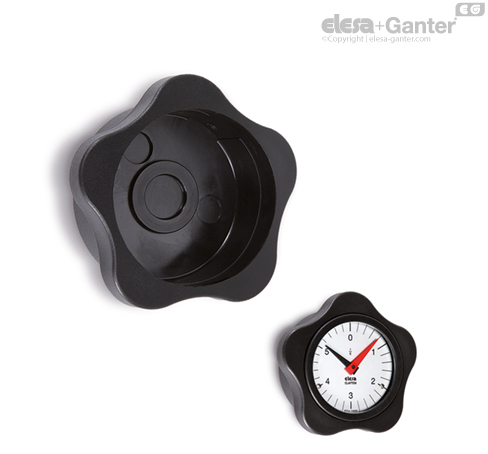

Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.
- VC.792-GXX: for gravity indicators.
- VC.792-PXX: for positive drive indicators.
Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.
Opomba
Funkcije in uporabe
The ergonomic design enables an effective grip. The lobed shape with no cavities prevents unhealthy residues from depositing and guarantees perfect cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.
Indicator choice (naročite ločeno)
To choose the indicator see the table below for possible assembly with indicators.
See also Navodila za sestavljanjefor gravity indicators type G. or positive drive indicators type P.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Cover CP-XX for use without the indicator.
Posebne verzije na zahtev
Posebne verzije na zahtev
Knob with stainless steel boss.
