Izvedba
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Standardne izvedbe
Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.
- MBT-GXX: for gravity indicators.

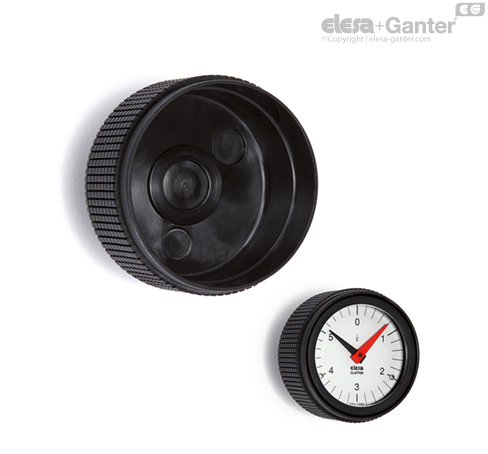

- MBT-PXX: for positive drive indicators.
Rear flange with internal crown gear wheel in acetal resin based (POM) technopolymer. Black-oxide steel screw and anchor pin.
Opomba
Ergonomy and design
The particular knurling on the outside rim of the knob, provided with a structure of very fine pitch, allows a safe and comfortable grip, offering the operator the possibility of operating under the most different working conditions in a sensitive and ergonomic way and simplifying the adjustment of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist.
Indicator choice (naročite ločeno)
To choose the indicator see the table below for possible assembly with indicators.
See also Navodila za sestavljanje for gravity indicators or positive indicators type G or positive drive indicators type P.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Cover CP-XX for fitting instead of the indicator.
