Izvedba
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Standardna izvedba
Boss H7 reamed through hole.

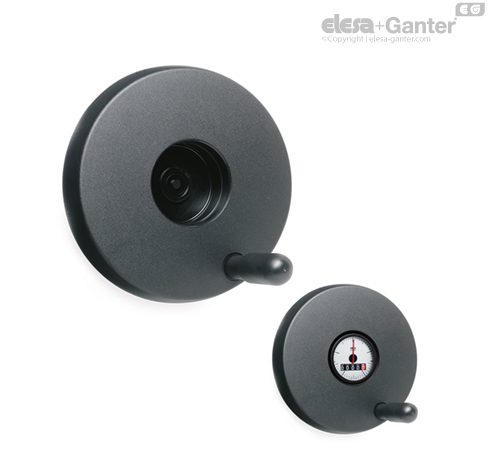

- VDSC-GXX+I: with revolving handle I.621+x in polyamide based (PA) technopolymer, black colour, matte finish.
Black-oxide steel boss.
- VDSC-GXX-SST+I: with revolving handle I.621+x-SST in polyamide based (PA) technopolymer, black colour, matte finish.
AISI 303 stainless steel boss.
- VDSC-GXX+IR: with fold-away handle IR.620 in polyamide based (PA) technopolymer, black colour, matte finish.
Black-oxide steel boss.
- VDSC-GXX-SST+IR: with fold-away handle IR.620-SST in polyamide based (PA) technopolymer, black colour, matte finish.
AISI 303 stainless steel boss.
Opomba
Indicator choice (naročite ločeno)
VDSC-XX solid handwheels can be used with analogue and digital-analogue gravity indicators.
To choose the indicator see the table below for possible assembly with indicators.
See also Navodila za sestavljanjefor gravity indicators type G..
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Cover CP-XXfor fitting instead of the indicator.
Other executions
Posebne verzije na zahtev
Ploščna ročna kolesa s prečnimi izvrtinami po GN 110.
