Izvedba
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
Indicator housing
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Revolving handle
I.621+x in polyamide based (PA) technopolymer, black colour, matte finish.
Standardne izvedbe
Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.
- VRTP-GXX2: without handle.
Executions -K with hole and keyway in compliance with DIN 6885/1, tolerance.
- VRTP-GXX2-K: without handle.

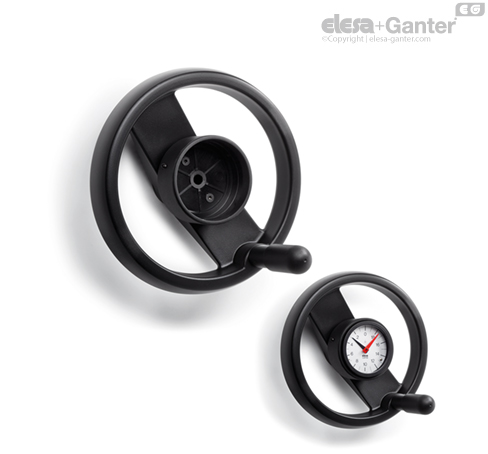

- VRTP-GXX2+I-K: with revolving handle.
Opomba
Indicator choice (naročite ločeno)
VRTP-XX two-spoke handwheels can be used with analogue and digital-analogue gravity indicators.
To choose the indicator see the table below for possible assembly with indicators.
See also Navodila za sestavljanje for gravity indicators type G.
Posebne verzije na zahtev
Posebne verzije na zahtev
Execution with hand reset: the indicator reading can be reset in any position within the positioning range, so that further readings can be referred to the reset point. To reset the reading turn the indicator housing until the two pointers reach the zero position, by keeping the indicator body still. By so doing the relevant position (phase) between the indicator and the handwheel can be changed by a small effort, but enough to avoid any accidental phase displacement.
