Main specifications
Vpenjalo
S steklenimi vlakni ojačan termoplast (poliamid PA), RAL 9005 (C9) črna ali RAL 7040 siva (C33), odporen na UV-sevanje, matiran
Screws and nuts
Vijak s cilindrično glavo in šestrobim nastavkom iz plemenitega jekla AISI 304 in obdelavo, ki preprečuje zatikanje.
Samoblokirne matice iz plemenitega jekla AISI 304.
Supplied: two screws and two nuts for versions TCC-TP-E and TCC-TP-S, one screw and one nut for version TCC-TP-I
Standardne izvedbe

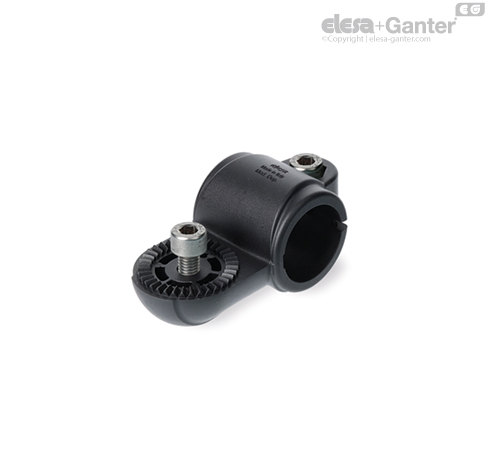

- TCC-TP-E: external teeth.
- TCC-TP-I: internal teeth.
General information
Funkcije
Two clamps, one with external teeth and one with internal teeth or two without teeth, can be joined to create a hinged joint.
Joints comprising clamps with external/internal teeth (36 teeth) have a 10° adjustment angle.
Joints comprising clamps without teeth can be positioned at any angle.
Clamps for tubes with a diameter of 30 ± 0.2 mm.
For smaller diameter tubes, the hole reduction sleeve can be used TCC-A (to be ordered separately).
The „s“ grub screws may be replaced by the kit TCC-KS.
Tehnički podaci
The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque „C#“.
