Main specifications
Bracket
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Bushings and washers
Plemenito jeklo AISI 304.
Bearing
High quality with traceability codes. Chrome steel.
Lubricator
Ravni, iz ponikljane medenine z 1/8 navojem za plin.
Tesnilni obroči
NBR rubber.
Pokrov
Glass-fibre reinforced polypropylene based (PP) technopolymer, RAL 7015 grey colour, matte finish.
Closed cap for head bracket or for pass-through shafts.
Standardne izvedbe

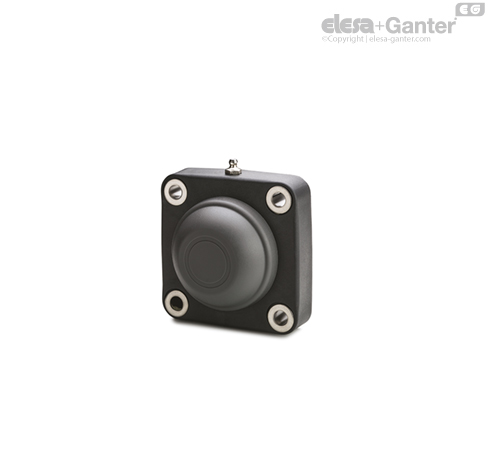

- UCF-T: head bracket with closed cover.
- UCF-P: bracket for pass-through shaft with drilled cover and NBR rubber packing ring for rotating shafts.
General information
Funkcije in uporabe
Overall dimensions are in compliance with ISO 3228.
A system of completely sealed packing rings assures the protection of the bearing from dirt ingress.
Max shaft misalignment = 2,5°.
Navodila za uporabo
Navodila za uporabo

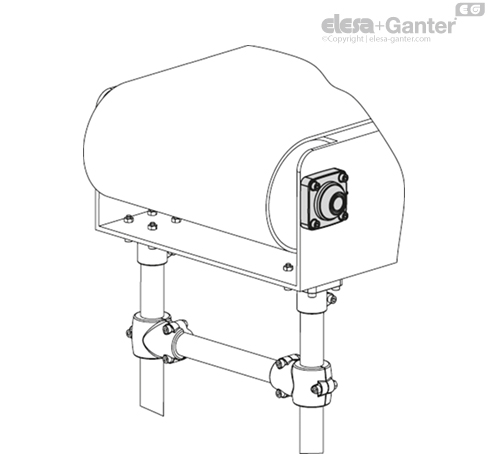

Assembly with shafts without end stops. For optimum operation, we recommend periodic lubrication with a common grease resistant to high temperatures and oxidation.
Posebne verzije na zahtev
Posebne verzije na zahtev
- AISI 440C stainless steel bearing.
- Bearing in inch sizes.
- Brackets for shafts with diameters in different sizes.
- Nosilci iz tehnopolimera na osnovi polipropilena (PP), tesnilni obročki in oljno tesnilo iz materiala VITON®*.
* Registered trademark by DuPont Dow Elastomers.
