Izvedba
Self-supporting structure
Tehnopolimer na osnovi acetalne smole (POM), črne barve.
Zatiči
Plemenito jeklo AISI 304.
Valjčki
Polyethylene based (PE) technopolymer, grey colour.
Standardne izvedbe
- GLB-2-RS: with shaped rollers, spherical contact.

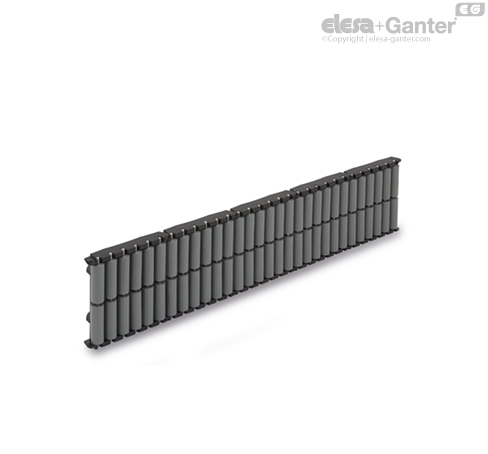

- GLB-2-RC: with cylindrical rollers.
- GLB-2-RT: with shaped rollers, cylindrical contact.
Opomba
Funkcije in uporabe
GLB-2 side guides are modular self-supporting structures for the side guide of products with important vertical dimensions on conveyor belts (Fig.1).
Particularly suitable for use in wet environments.
Depending on the product to transport, it is recommended to use:
- GLB-2-RS: for the guide of products in cans or in plastic containers;
- GLB-2-RC: for the guide of cardboard products, for a greater fluency;
- GLB-2-RT: for the guide of glass products, in case of accidental breakage they facilitate the expulsion of debris.
The joint in the roller side guides allows an external curvature radius 500 mm, internal curvature radius 350 mm.
Supplied already assembled in modules of 375 mm length, for profiles 40x8 mm.
