Izvedba
Type (Base)
- Type E0: Without rubber pad, with one slotted hole
- Type E3: With rubber pad, vulcanized, black, with one slotted hole
- Type G0: Without rubber pad, with 2 slotted holes
- Type G3: With rubber pad, vulcanized, black, with 2 slotted holes
Version (Screw)
- S: brez matice, zunanji šestrobni navoj spodaj
- SK: z matico, zunanji šestrobni navoj spodaj
- Version U: Without nut, hex socket at the top and wrench flat at the bottom
- Version UK: With nut, hex socket at the top and wrench flat at the bottom
- Version X: External hex with internal thread
Nožni krožnik
Jeklo
pocinkano, modro pasivirano
Nastavitveno vreteno
Jeklo
pocinkano, modro pasivirano
Hex nut ISO 4032
Jeklo
pocinkano, modro pasivirano
Informacije
Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions.
The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.
The leveling feet are supplied fully assembled and are not removable.
Nosilnost izravnalnih nog

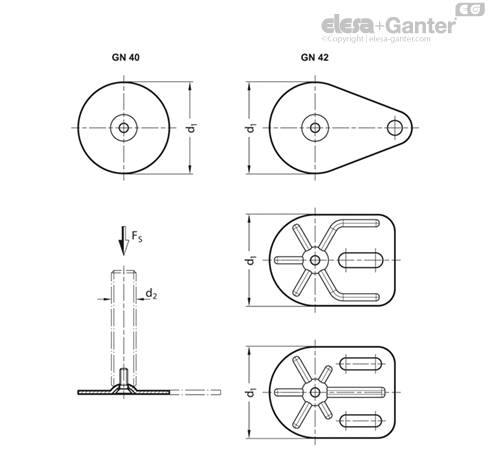

| d1 | - | - | d2 | Static load Fs in kN | - | - |
| GN 40 | GN 42 | GN 42 | - | Različice z vretenom | - | - |
| - | Drope shape | Rectangular shape | - | S / SK | U / UK | X |
| 40 | - | - | M 8 | 7 | - | 7 |
| 40 | - | - | M 10 | 7 | - | 7 |
| 40 | - | - | M 12 | 7 | - | 7 |
| 40 | - | - | M 16 | - | 7 | 7 |
| 50 | 50 | - | M 8 | 8 | - | 8 |
| 50 | 50 | - | M 10 | 8 | - | 8 |
| 50 | 50 | - | M 12 | 8 | - | 8 |
| 50 | 50 | - | M 16 | - | 8 | 8 |
| 60 | 60 | - | M 8 | 8 | - | 8 |
| 60 | 60 | - | M 10 | 10 | - | 10 |
| 60 | 60 | - | M 12 | 10 | - | 10 |
| 60 | 60 | - | M 16 | - | 10 | 10 |
| 80 | 80 | 80 | M 8 | 8 | - | 8 |
| 80 | 80 | 80 | M 10 | 10 | - | 10 |
| 80 | 80 | 80 | M 12 | 12 | - | 12 |
| 80 | 80 | 80 | M 16 | - | 12 | 12 |
| 80 | 80 | 80 | M 20 | - | 16 | 16 |
| 80 | 80 | 80 | M 24 | - | 16 | - |
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
Ali je izdelek primeren za določeno uporabo, mora v posameznem primeru določiti uporabnik. Na navedene vrednosti lahko vplivajo vplivi okolja.
