Informacije

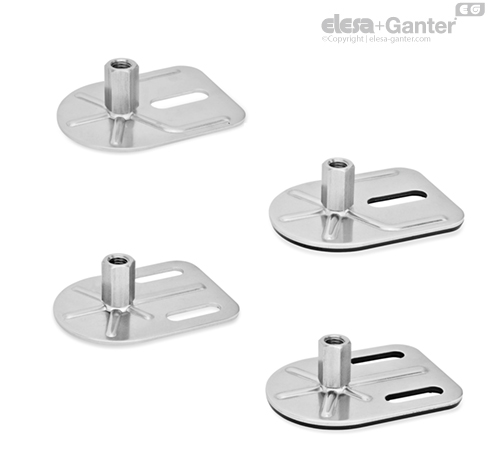

Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feat to be used in every situation.
The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces.
The leveling feet are supplied fully assembled and are not removable.
Nosilnost izravnalnih nog
| d1 | - | - | d2 | Statična obremenitev v kN | - | - | - | - |
| GN 41 / GN 44 | GN 43 / GN 45 | GN 43 | - | Različice z vretenom | - | - | - | - |
| - | Drope shape | Rectangular shape | - | S / SK | T / TK in U / UK | V / VK | W | X |
| 40 | - | - | M 8 | 8 | - | - | - | 8 |
| 40 | - | - | M 10 | 12 | - | - | - | 12 |
| 40 | - | - | M 12 | 12 | - | - | - | 12 |
| 40 | - | - | M 16 | - | 12 | - | - | 12 |
| 50 | 50 | - | M 8 | 8 | - | - | - | 8 |
| 50 | 50 | - | M 10 | 14 | - | - | - | 14 |
| 50 | 50 | - | M 12 | 14 | - | - | - | 14 |
| 50 | 50 | - | M 16 | - | 14 | - | - | 14 |
| 60 | 60 | - | M 8 | 8 | - | - | - | 8 |
| 60 | 60 | - | M 10 | 14 | - | - | - | 14 |
| 60 | 60 | - | M 12 | 16 | - | - | - | 16 |
| 60 | 60 | - | M 16 | - | 16 | 16 | 16 | 16 |
| 80 | 80 | 80 | M 8 | 8 | - | - | - | 8 |
| 80 | 80 | 80 | M 10 | 14 | - | - | - | 14 |
| 80 | 80 | 80 | M 12 | 20 | - | - | - | 20 |
| 80 | 80 | 80 | M 16 | - | 20 | 20 | 20 | 20 |
| 80 | 80 | 80 | M 20 | - | 20 | 20 | 20 | 20 |
| 80 | 80 | 80 | M 24 | - | 22 | 22 | 22 | - |
The static load bearing capacity given in the table rests on a test series in which the load has been applied perpendicular to the base plate (without rubber underlay). For the values given in the table, the strain relief may result in minor deformations of the base plate.
Bending and buckling stress which often occurs in practice results in a lower load bearing capacity of the adjustment spindle and may have to be taken into account.
Also, the spindle strength is assumed to be ≥ 500 N/mm2.
The details given on strength are nonbinding guide values without any liability. In general, they do not constitute a warranty of quality.
Ali je izdelek primeren za določeno uporabo, mora v posameznem primeru določiti uporabnik. Na navedene vrednosti lahko vplivajo vplivi okolja.
