Main specifications
Osnova
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.

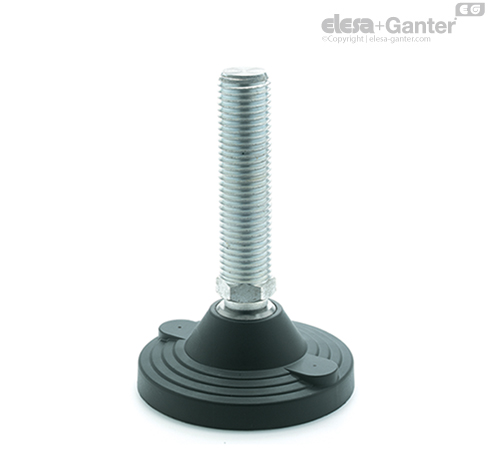

Articulated through stem
Threaded zinc-plated steel with regulation hexagon.
Assembled to the base by means of zinc-plated steel set screw and washer.
Cup washer for stem bearing
Glossy zinc-plated steel.
Standardne verzije
- LV.F-ACV: without no-slip disk.
- LV.F-ACV-AS: with NBR rubber no-slip disk, hardness 90 Shore A, supplied assembled, reinforced with zinc-plated steel plate, fixed by means of two screws.
Talna montaža

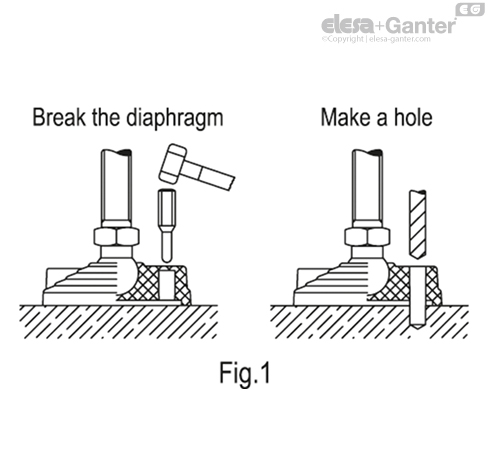

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig. 1).
General information
Funkcije
Posebna narebričena površina pod spodnjim robom podlage zagotavlja odlično stabilnost in oprijem pri uporabi izravnalnega elementa brez nedrsečega diska tudi na površinah, ki niso popolnoma ravne.
The components of the levelling elements (base and stem) are supplied already assembled.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Zinc-plated steel nut (see Nuts NT.-).
Posebne verzije na zahtev
Posebne verzije na zahtev
AISI 304 stainless steel stems.
