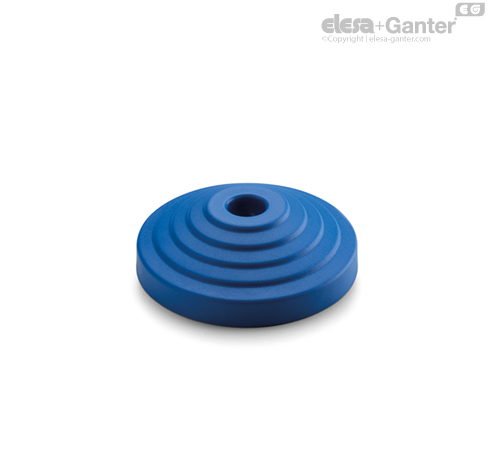

BASE LV.A-VD Ploščice za zgibne noge Base without ground mounting, without no-slip disk

Material

S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), modra barva RAL 5005, matirana obdelava.

Izdelano iz surovin, skladnimi z zahtevami FDA (FDA CFR.21 in EU 10/2011).

Bases without no-slip disk

• LS.A-VD (D = 25 - 32 - 40 - 50 - 60 mm): base without ground mounting.

• LV.A-VD (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

• LV.F-VD (D = 80 - 100 - 125 mm): base with two holes at 180° for ground mounting, supplied covered by a diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig.1).

Bases with no-slip disk assembled

NBR rubber no-slip disk, hardness 70 Shore A.

Poseben sistem pritrditve nedrsečega diska na podlago zagotavlja popolno pritrditev, ki preprečuje ločitev tudi v primeru udarca med prevozom ali adhezije (lepljenja) na tla (glejte Nedrseči disk).

• LS.A-AS-VD (D = 25 - 32 - 40 - 50 - 60 mm): base without ground mounting.

• LV.A-AS-VD (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

• LV.F-AS-VD (D = 80 - 100 - 125 mm): base with two holes at 180° for ground mounting, supplied covered by a diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig.1).
