Main specifications
Osnova
Glass-fibre reinforced polyamide based (PA) special conductive technopolymer, black colour, matte finish.
Surface resistivity = 103 Ω (ASTM D257 measuring method).
Volume resistivity = 103 Ωcm (ASTM D257 measuring method).
Zgibno steblo
Threaded zinc-plated steel with regulation hexagon.
Standardne verzije
- LV.A-ESD-C: without no-slip disk.

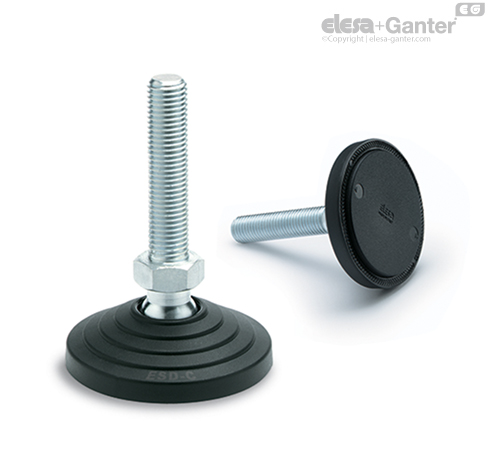

- LV.A-AS-ESD-C: with NBR conductive rubber, hardness 70 Shore A, supplied assembled.
Surface resistivity = 103 Ω (ASTM D991 measuring method).
Volume resistivity = 103 Ωcm (ASTM D991 measuring method).
General information
Funkcije in uporabe
The special conductive technopolymer (ESD-C Electrostatic Discharge Conductive) prevents the accumulation of electrostatic charge.
Poseben sistem pritrditve nedrsečega diska na podlago zagotavlja popolno pritrditev, ki preprečuje ločitev tudi v primeru udarca med prevozom ali adhezije (lepljenja) na tla (glejte Nedrseči disk).
The bases are suitable for "ESD PROTECTED AREA" (EPA) where components, which are susceptible to electrostatic discharges, are handled.
The (ESD-C) indelibly printed mark on the surface of the levelling elements bases identifies the particular conductive features of the material according to EN 100015/1 and IEC 61340-5-1.
Informacije za naročanje
The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.
Za ločeno naročanje osnov in stebel glejte:
tabela možnih kombinacij osnov in stebel
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Zinc-plated steel nut (see Nuts NT.-).
