Main specifications
Osnova
Glass-fibre reinforced polyamide based (PA) special conductive technopolymer, black colour, matte finish.
Surface resistivity = 103 Ω (ASTM D257 measuring method).
Volume resistivity = 103 Ωcm (ASTM D257 measuring method).
Zgibno steblo
Threaded AISI 304 stainless steel with regulation hexagon.
Standardne verzije
- LV.A-SST-ESD-C: without no-slip disk.

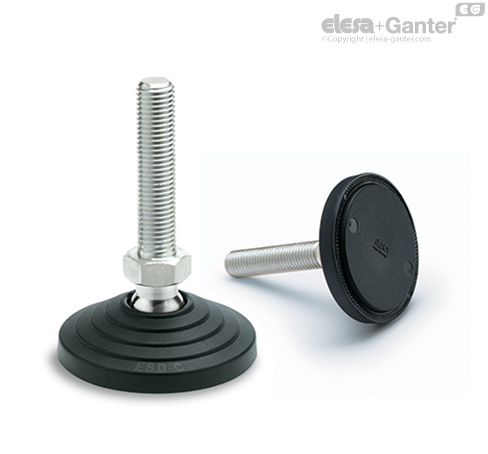

- LV.A-AS-SST-ESD-C: with NBR conductive rubber, hardness 70 Shore A, supplied assembled.
Surface resistivity = 103 Ω (ASTM D257 measuring method).
Volume resistivity = 103 Ωcm (ASTM D257 measuring method).
General information
Funkcije in uporabe
The special conductive technopolymer (ESD-C Electrostatic Discharge Conductive) prevents the accumulation of electrostatic charge.
The bases are suitable for "ESD PROTECTED AREA" (EPA) where components, which are susceptible to electrostatic discharges, are handled.
The (ESD-C) indelibly printed mark on the surface of the levelling elements bases identifies the particular conductive features of the material according to EN 100015/1 and IEC 61340-5-1.
Poseben sistem pritrditve nedrsečega diska na podlago zagotavlja popolno pritrditev, ki preprečuje ločitev tudi v primeru udarca med prevozom ali adhezije (lepljenja) na tla (glejte No-slip disks).
Informacije za naročanje
The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.
Za ločeno naročanje osnov in stebel glejte:
tabela možnih kombinacij osnov in stebel
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
AISI 304 stainless steel nut (see Nuts NT.-).
