Main specifications
Handle shanks
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. Supplied assembled. The handle shank connection to the tube avoids tube rotation.
Anti-rotation tube end plugs
NBR synthetic rubber.
Standard executions
Pass-through holes for cylindrical-head screws with hexagon socket.

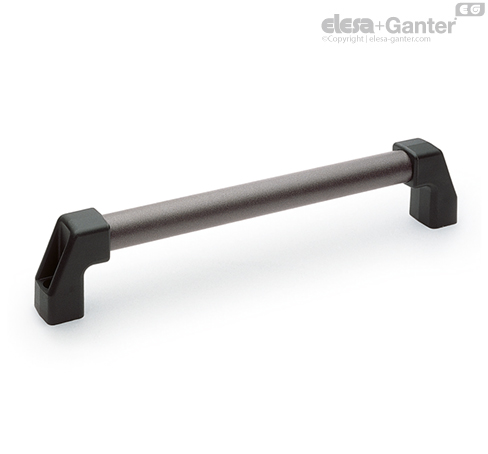

- M.1043-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
- M.1043-AN: anodised aluminium tube, natural colour.
- M.1043-SST: AISI 304 stainless steel tube.
Threaded blind holes.
- M.1043-BM-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
- M.1043 BM-AN: anodised aluminium tube, natural colour.
- M.1043-BM-SST: AISI 304 stainless steel tube.
General information
Technical data
Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
