Izvedba
Material
High-strength, reinforced phenolic based (PF) Duroplast, black colour, glossy finish.
Tesnilo
Matte anodised aluminium.
(ELESA Original design - Reg. U.S. Pat. & TM Off.)
Standardne izvedbe
AISI 303 stainless steel hub with H7 reamed hole.
H9 reamed hole for executions with keyway.
- VDN.FP-SST-A: without handle.
- VDN.FP+I-SST-A: z vrtljivim ročajem I.301+x in Duroplast.
- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
73695-10-K VDN.80 FP-SST-A-10-K
AISI 303 stainless steel hub not drilled in order to make holes different from the standard:

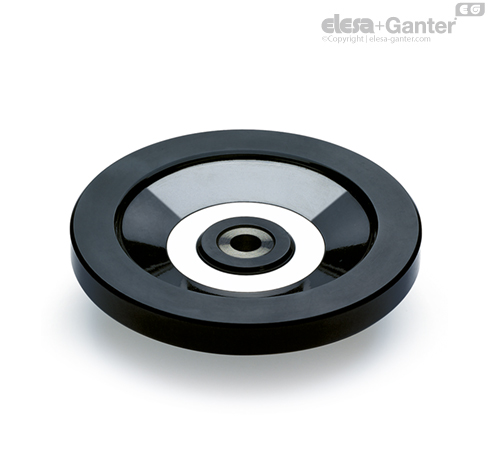

- VDN.FP-SST: without handle.
- VDN.FP+I-SST: z vrtljivim ročajem I.301+x in Duroplast.
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Axial retaining washer in AISI 303 stainless steel GN 184.5.
Posebne verzije na zahtev
Posebne verzije na zahtev
Handlwheels with incorporated balancing counterweights.
Ploščna ročna kolesa s prečnimi izvrtinami po GN 110.
Opomba
Ergonomy
The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.
