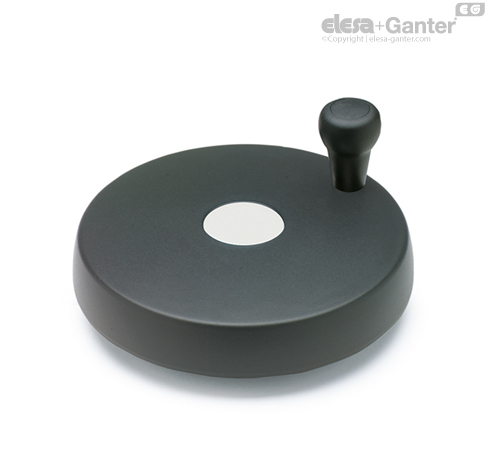

VDS+IEL Solid handwheels Revolving handle "Soft touch"

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Boss cap

Acetal resin based (POM) technopolymer, light-grey colour, push-fit assembly.

Standardne izvedbe

Black-oxide steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

• VDS.: without handle.
• VDS+I: with revolving handle I.621+x in technopolymer.
• VDS+IEL: with revolving handle IEL+x SOFT in technopolymer coated with "Soft-touch" thermoplastic elastomer (TPE).
• VDS+IR: with fold-away handle IR.620 in technopolymer.
• VDS+IRS: with safety fold-away handle IRS.820 in technopolymer.

AISI 304 stainless steel boss, H7 reamed hole.

• VDS-SST: without handle.
• VDS+I-SST: with revolving handle I.621+x-SST in technopolymer.
• VDS+IR-SST: with fold-away handle IR.620-SST in technopolymer.
• VDS+IRS-SST: with safety fold-away handle IRS.820-SST in technopolymer.

K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

72641-R-K VDS.80-A-8-K
