Main specifications
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Boss cap
Acetal resin based (POM) technopolymer, black colour, matte finish, push-fit assembly.
Ring
Matte anodised aluminium.
(ELESA original design - Reg. U.S. Pat.& TM Off.)
Standardne verzije
Black-oxide steel boss, H7 reamed hole.
H9 reamed hole for executions with keyway.
- VDT.: without handle.

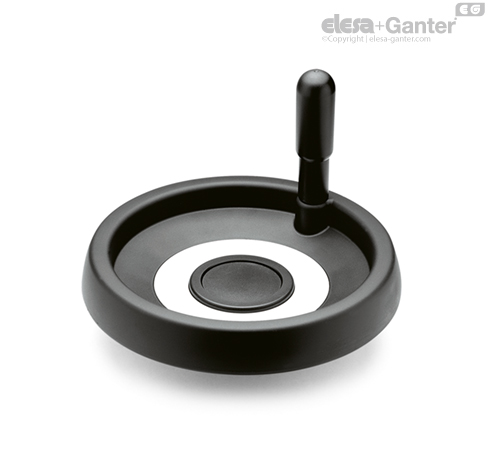

- VDT+I: with revolving handle I.621+x in technopolymer.
- VDT+IR: with fold-away handle IR.620 in technopolymer.
- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
170307-K VDT.100 A-10-K
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
Axial retaining washer type GN 184.
General information
Ergonomy
The rim with internal rear scallops makes the grip and the manoeuvre of the handwheel easier.
