Izvedba
Material
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
Boss-cap
- Anodised aluminium self-adhesive front plate.
- VRTP. 375: cover in polyester based technopolymer (PBT), RAL 7035 grey colour, glossy finish, press-fit assembly.
Standardne izvedbe
Black-oxide steel boss, H7 reamed hole.
H9 reamed hole for executions with keyway.
- VRTP.: without handle.
- VRTP+I: with revolving handle I.621+x in technopolymer.
- VRTP+IEL: with revolving handle IEL+x SOFT in technopolymer coated with "Soft-touch" thermoplastic elastomer (TPE).

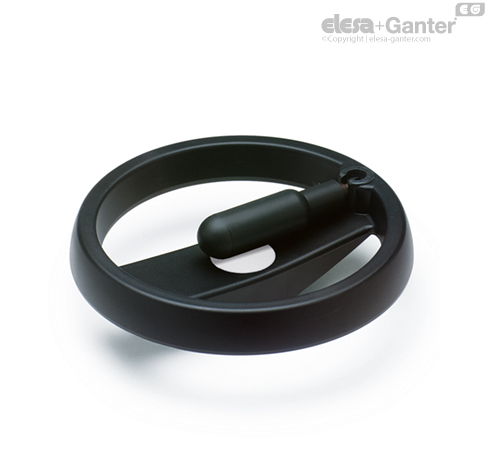

- VRTP+IR: with fold-away handle IR.620 in technopolymer.
- K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:
78411-R-K VRTP.80 A-8-K
Dodatna oprema na zahtevo
Dodatna oprema na zahtevo
- GN 184: axial retaining washer in black-oxide steel.
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colours, matte finish, press-fit assembly, available for VRTP.125, VRTP.160 and VRTP.200 (see table).
Other executions
Posebne verzije na zahtev
Ploščna ročna kolesa s prečnimi izvrtinami po GN 110.
