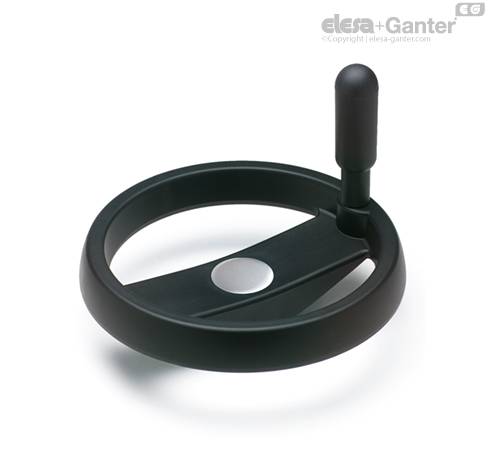

VRTP-P+I-SST Spoked handwheels with solid section Revolving handle

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Izdelano iz surovin, skladnimi z zahtevami FDA (FDA CFR.21 in EU 10/2011).

Boss-cap

AISI 304 stainless steel self-adhesive front plate adhesive suitable for contact with food (FDA CFR.21 and EU 10/2011).

Standardne izvedbe

AISI 304 stainless steel boss, H7 reamed hole.

H9 reamed hole for executions with keyway.

• VRTP-P+I-SST: with revolving handle type I.621+x-SST in polyamide based (PA) technopolymer, certified in compliance with FDA.
• VRTP-P+IR-SST: with fold-away handle type IR.620 in polyamide based (PA) technopolymer, certified in compliance with FDA. AISI 304 stainless steel pin, bushing and internal components, AISI 316L stainless steel support.
• K: index for executions with hole and keyway in compliance with DIN 6885/1, tolerance P9 i.e.:

79111-R-K VRTP.80-P+I-SST-8-K
