Specification
Version in Steel
Types
- Type V: flat ball, with swivel limiting stop
- Type VR: flat ball, with swivel limiting stop, corrugated
Version in Stainless Steel
Types
- Type VN: flat ball, with swivel limiting stop
- Type VRN: flat ball, with swivel limiting stop, corrugated
Screw
Stainless steel AISI 304
Kroglica
stainless steel AISI 440C
hardened
Information

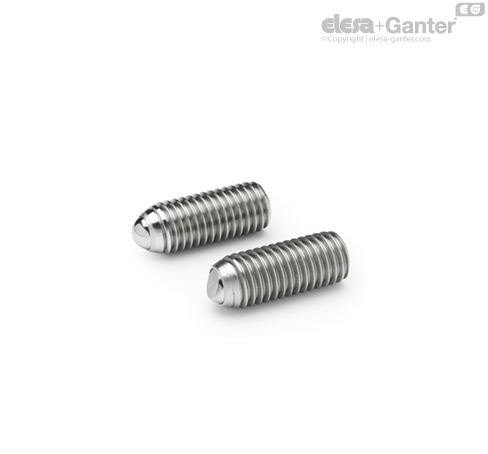

Ball point screws GN 605 with full ball (Type A / Type AN) are used in applications where a ball point contact is required.
The flat faced moving ball (Type B/ Type BN) allows a clamping or supporting of non parallel surfaces.
The ball of Type V/VN/VR/VRN can be swivelled to a maximum of 9° to ensure that clamping is always maintained on the flat section of the ball.
