GN 162.3-NI
GN 162.3

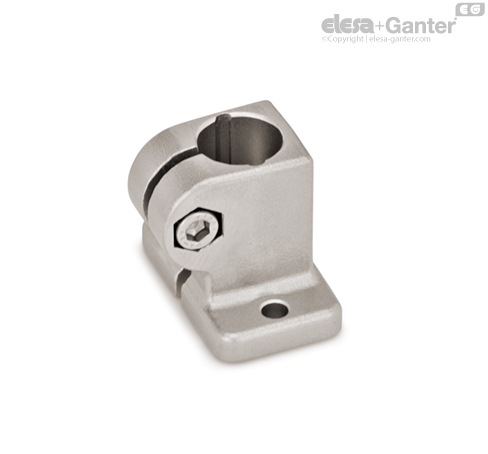

Osnovna plošča vpenjalnih spojev
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
No. 2: With stainless steel socket cap screw DIN 912
Aluminij
black, RAL 9005, textured finish SW
Stainless steel AISI CF-8 NI
Matte shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
The clamping bore of base plate connector clamps GN 162.3 is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 respectively.
Base plate connector clamps GN 162.3 can also be mounted to profile systems.
At the screw location z, the socket cap screw reduces the bore cross-section for clamping.
