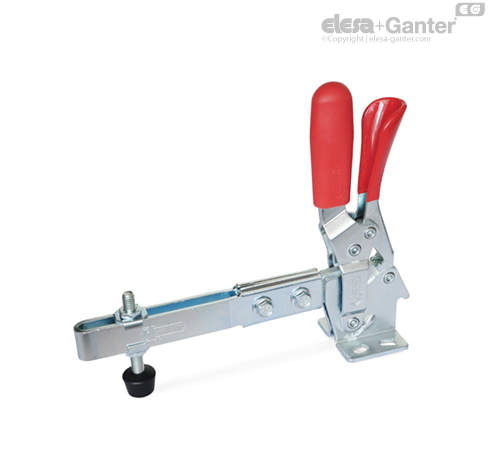

GN 810.3 Hitri vpenjalniki Jeklo

GN 810.3 toggle clamps have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type AL) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for type CL.

Type EL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.

Toggle clamps in the U-bar version with two flanged washers (type UL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type ULC.

• General information for toggle clamps

• Stainless Steel characteristics

• Spindle assemblies

• Clamping screws

• Holders for clamping screws GN 801 (for type AL)

• Holders for clamping screws GN 809 (for type EL)

• Clamping arm extenders GN 801.1 (for type AL)

• Clamping arm extenders GN 801.2 (for type EL)

• Clamping arm extenders GN 809.1 (for type EL)
