Izvedba
Material
High-resilience polyamide based (PA) technopolymer, black colour, matte finish.
Vrtljivi zatič
Plemenito jeklo AISI 303.
Standardne izvedbe

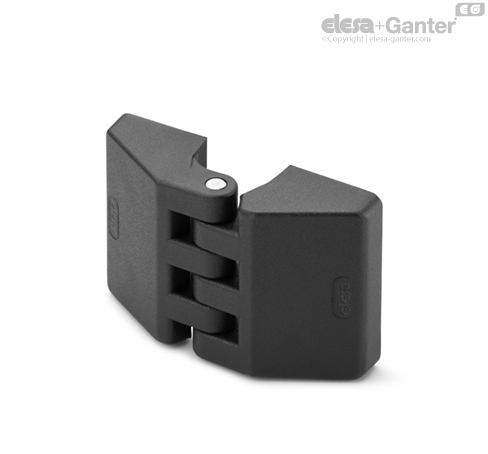

- CFE-B: nickel-plated brass bosses with threaded hole.
- CFE-p: nickel-plated brass threaded studs.
- CFE-CH: pass-through holes for cylindrical head screws.
- CFE-B-p: nickel-plated brass bosses with threaded hole and nickel-plated brass threaded studs.
- CFE-B-CH: nickel-plated brass bosses with threaded hole and pass-through holes for cylindrical head screws.

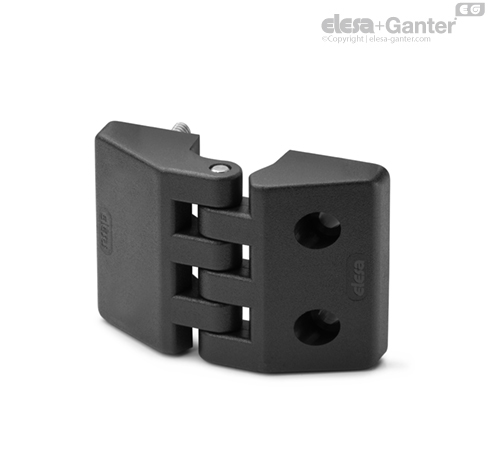

- CFE-p-CH: nickel-plated brass threaded studs and pass-through holes for cylindrical head screws.
Opomba
Aplikacije

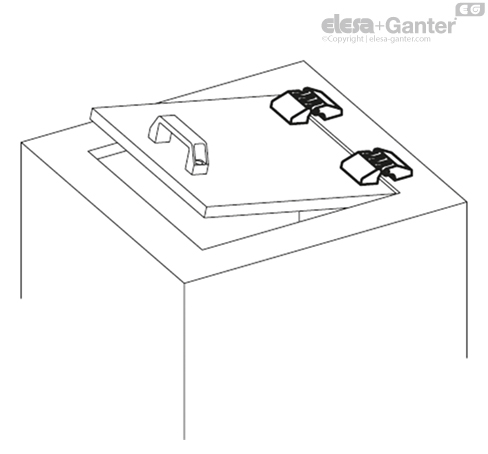

This hinge has been developed in particular for doors provided with gaskets.

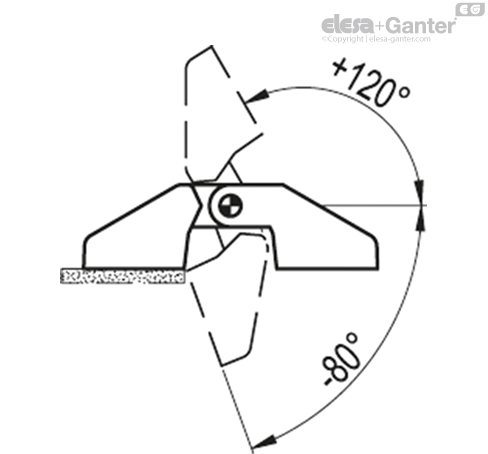

Kot vrtenja (približna vrednost)
Max 200° (-80° and +120° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° |
 |  |  |
| Opis | Največja delovna obremenitev
Ea [N] | Obremenitev pri lomu
Ra [N] | Največja delovna obremenitev
Er [N] | Obremenitev pri lomu
Rr [N] | Največja delovna obremenitev
E90 [N] | Obremenitev ob lomu
R90 [N] |
| CFE.30 B-M3 | 50 | 660 | 140 | 1040 | 50 | 310 |
| CFE.30 p-M3x13 | 40 | 460 | 110 | 1040 | 60 | 560 |
| CFE.30 CH-3 | 50 | 640 | 120 | 980 | 20 | 300 |
| CFE.30 B-M3-p-M3x13 | 40 | 460 | 110 | 1040 | 50 | 310 |
| CFE.30 B-M3-CH-3 | 50 | 640 | 120 | 980 | 20 | 300 |
| CFE.30 p-M3x13-CH-3 | 40 | 460 | 110 | 980 | 20 | 300 |
| CFE.40 B-M4 | 90 | 1110 | 230 | 1920 | 60 | 590 |
| CFE.40 p-M4x18 | 90 | 1110 | 300 | 2440 | 60 | 590 |
| CFE.40 CH-4 | 150 | 1580 | 370 | 2460 | 80 | 1210 |
| CFE.40 B-M4-p-M4x18 | 90 | 1110 | 230 | 1920 | 60 | 590 |
| CFE.40 B-M4-CH-4 | 90 | 1110 | 230 | 1920 | 60 | 590 |
| CFE.40 p-M4x18-CH-4 | 90 | 1110 | 300 | 2440 | 60 | 590 |
| CFE.48 B-M5 | 160 | 1260 | 440 | 2890 | 190 | 1290 |
| CFE.48 p-M5x17 | 190 | 1900 | 310 | 2870 | 160 | 1190 |
| CFE.48 CH-5 | 300 | 2160 | 410 | 2850 | 150 | 1440 |
| CFE.48 B-M5-p-M5x17 | 160 | 1260 | 310 | 2870 | 160 | 1190 |
| CFE.48 B-M5-CH-5 | 160 | 1260 | 410 | 2850 | 150 | 1290 |
| CFE.48 p-M5x17-CH-5 | 190 | 1900 | 310 | 2850 | 150 | 1190 |
| CFE.66 B-M6 | 530 | 4160 | 500 | 2480 | 310 | 2250 |
| CFE.66 p-M6x16 | 240 | 2670 | 700 | 3490 | 270 | 1830 |
| CFE.66 CH-6 | 440 | 3160 | 690 | 3450 | 260 | 2920 |
| CFE.66 B-M6-p-M6x16 | 240 | 2670 | 500 | 2480 | 270 | 1830 |
| CFE.66 B-M6-CH-6 | 440 | 3160 | 500 | 2480 | 260 | 2250 |
| CFE.66 p-M6x16-CH-6 | 240 | 2670 | 690 | 3450 | 260 | 1830 |
