Izvedba
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour or RAL 9016 white (C16), matte finish.
Vrtljivi zatič
Acetal resin based (POM) technopolymer, black colour or RAL 9016 white (C16), matte finish.
Standardne izvedbe
- CFTX-SH: pass-through holes for countersunk head screws.

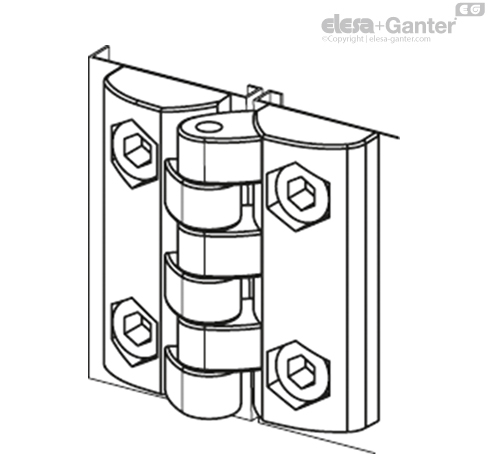

- CFTX-EH: pass-through holes with hexagon socket also available for cylindrical head screws. This hinge with boss or stud can be obtained by means of hexagonal head nuts or screws fitted into the assembly hole.
Opomba
Kot vrtenja (približna vrednost)
Max 200° (-20° and +180° being 0° the condition where the interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
To choose the convenient type and the right number of hinges for your application, see the Smernice.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° |
 |  |  |
| Opis | Največja delovna obremenitev
Ea [N] | Obremenitev pri lomu
Ra [N] | Največja delovna obremenitev
Er [N] | Obremenitev pri lomu
Rr [N] | Največja delovna obremenitev
E90 [N] | Obremenitev ob lomu
R90 [N] |
| CFTX.40 | 300 | 1500 | 300 | 1500 | 200 | 750 |
| CFTX.49 | 500 | 2900 | 400 | 3000 | 300 | 1600 |
| CFTX.65 | 800 | 4500 | 800 | 4400 | 500 | 2200 |
