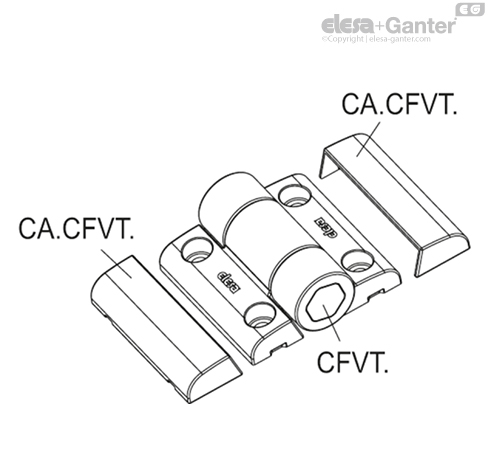

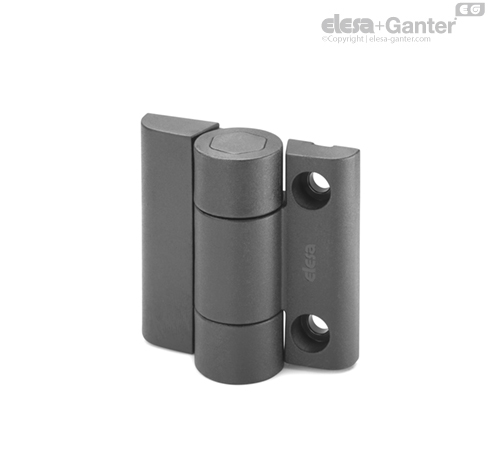

CFVT-CH: without detent (free rotation).

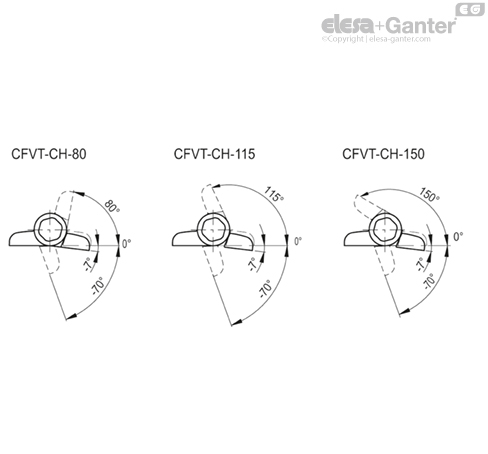

CFVT-CH-80: detent with angle -70° /-7° / 80°, resistant torque 0.7 Nm or 1.2 Nm or 1.7 Nm.
CFVT-CH-115: detent with angle -70° /-7° / 115°, resistant torque 0.7 Nm or 1.2 Nm or 1.7 Nm.
CFVT-CH-150: detent with angle -70° / -7° / 150°, resistant torque 0.7 Nm or 1.2 Nm or 1.7 Nm.

Max rotation angle: about 255º (-75° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).

Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.

The resistant torque corresponds to the torque that must be applied to free the detent hinge.

The hinge has been tested with more than 20.000 opening and closing cycles and the values of the resistant torque were unchanged.

The internal detent device (ELESA patent) allows three different detent positions of the door depending on the execution.

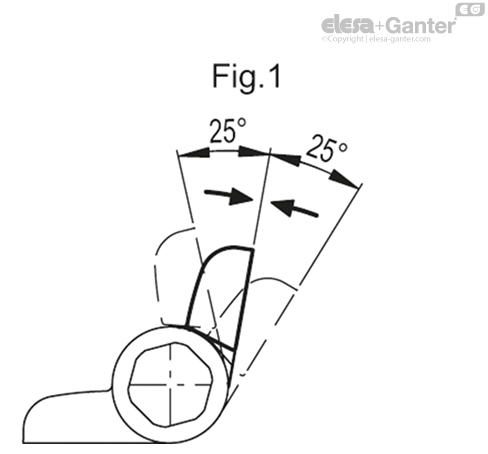

When the hinge is in a range of +/- 25 ° with respect to a detent position, it reaches one of these positions (Fig.1) thanks to the internal device.

Value detected in special tests without load application.

Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.

Testi upornosti	AKSIALNA OBREMENITEV		RADIALNA OBREMENITEV		OBREMENITEV POD KOTOM 90°

Opis	Največja delovna obremenitev Ea [N]	Obremenitev pri lomu Ra [N]	Največja delovna obremenitev Er [N]	Obremenitev pri lomu Rr [N]	Največja delovna obremenitev E90 [N]	Obremenitev ob lomu R90 [N]
CFVT	300	2100	400	1900	250	1800
