Main specifications
Material
Anodized aluminium, black or natural colour, matte finish.
Vrtljivi zatič
Plemenito jeklo AISI 304.
Guide bushings for pin
Tehnopolimer na podlagi poliamida (PA).
Assembly screws
Stainless steel self-tapping screws 4.8x15.9 DIN 7982 (frame side) and stainless steel M5x10 semi-rounded head screws (door side). Included in the supply.
Standardne izvedbe
- CMDX-AL-P: with bodies on the same plane.

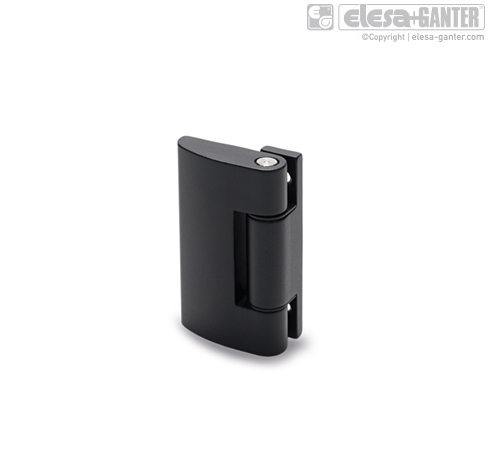

- CMDX-AL-R: with raised body.
- CMDX-AL-PS: with bodies on the same plane, opening to the left side.
- CMDX-AL-RS: with raised body, opening to the left side.
- CMDX-AL-PD: with bodies on the same plane, opening to the right side.
- CMDX-AL-RD: with raised body, opening on the right side.
Index for finish:
- AN: anodised in natural colour.
- AB: anodised in black colour.
General information
Funkcije in uporabe
The hinge is made up of two bodies with different dimensions (a narrow one and a larger one) and can be assembled for example on structures with thin frame or door. Supplied not assembled for an easy fixing.
Kot vrtenja (približna vrednost)
Max 185° (-5° and +180° being 0° the condition where the two hinged surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to damage the hinge.
