Izvedba
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Vrtljivi zatič
AISI 303 stainless steel, totally moulded in the hinge body.
Standardne izvedbe
- CFJ-B: nickel-plated brass bosses with threaded hole.

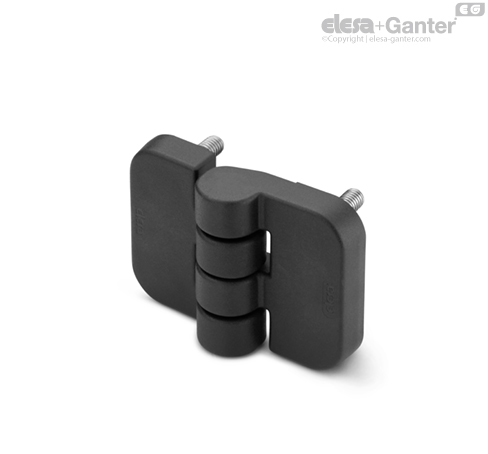

- CFJ-p: nickel-plated steel threaded studs.
- CFJ-EH: pass-through holes for hexagonal head screws.
- CFJ-B-SH: nickel-plated brass bosses with threaded hole and pass-through holes for countersunk head screws.
Opomba
Funkcije in uporabe
The pin is totally moulded in the hinge body (ELESA patent) thus it cannot be extracted, preventing any hinge tampering.
This charatcteristic makes the hinge particularly suitable for mounting on structures or equipments requiring protection against intrusion.
Kot vrtenja (približna vrednost)
Max 275º (-95° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Omejitve kota vrtenja ne smete preseči, da ne vplivate na delovanje tečaja.
Če želite izbrati primerno vrsto in pravo število tečajev za svojo uporabo, glejte Smernice.
| Testi upornosti | AKSIALNA OBREMENITEV | RADIALNA OBREMENITEV | OBREMENITEV POD KOTOM 90° |
 |  |  |
| Opis | Največja delovna obremenitev
Ea [N] | Obremenitev pri lomu
Ra [N] | Največja delovna obremenitev
Er [N] | Obremenitev pri lomu
Rr [N] | Največja delovna obremenitev
E90 [N] | Obremenitev ob lomu
R90 [N] |
| CFJ.50 B-M6 | 730 | 4170 | 2220 | 4450 | 710 | 2250 |
| CFJ.50 p-M6x17 | 1420 | 4410 | 2180 | 4350 | 510 | 2220 |
| CFJ.50 EH-6 | 1740 | 3470 | 1490 | 2970 | 460 | 2120 |
| CFJ.50-R B-M6-SH-6 | 1480 | 2780 | 1310 | 2490 | 390 | 1900 |
