Main specifications
Material
S steklenimi vlakni ojačan tehnopolimer na podlagi poliamida (PA), črna barva, matirana obdelava.
Elastic retaining ring in acetal based technopolymer (POM), black colour.
Zadrževalna veriga
Kabel s krogelno glavo in spojnimi glavami iz tehnopolimera na podlagi acetalne smole (POM), črna barva.
Z NERINOX obdelan obroč iz plemenitega jekla z dvema tuljavama.
Zategovanje glave s samoreznim vijakom ø4.8 mm UNI EN ISO 7050 ali vijakom z ugreznjeno glavo M5 UNI EN ISO 10642.
Standardne izvedbe
- VTT-B-LP: medeninast nastavek, navojna slepa izvrtina.
- VTT-SST-LP: AISI 304 stainless steel boss, threaded blind hole.
- VTT-p-LP: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Tehnični podatki).
- VTT-SST-p-LP: AISI 304 stainless steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Tehnični podatki).
General information
Funkcije in uporabe

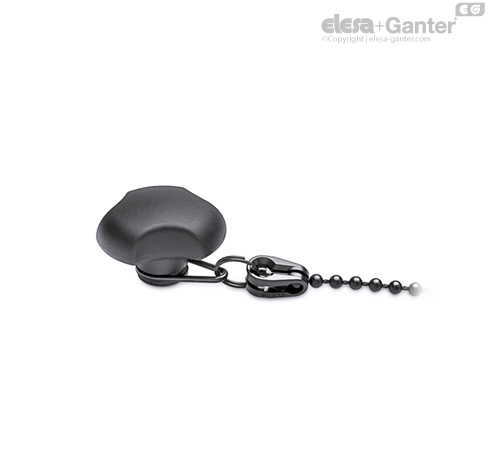

Suitable where it is necessary to prevent the loss of the knob.
The elastic retaining ring, housed in the groove of the knob can turn freely. The coiled ring connects the elastic retaining ring to the chain.
The three-lobe shape with large recesses is particularly ergonomic also for smaller knobs, ensuring an effective grip even with work gloves.
The design without rear cavities, generally suitable for reducing thickness, prevents unhealthy residues from depositing, ensuring easy cleaning. Particularly suitable for applications on machines and equipment whose parts must be frequently cleaned by using water jets or steam.
