DVE-B Gumijasti odbojniki s prirobnico Square mounting flange

Funkcije in uporabe

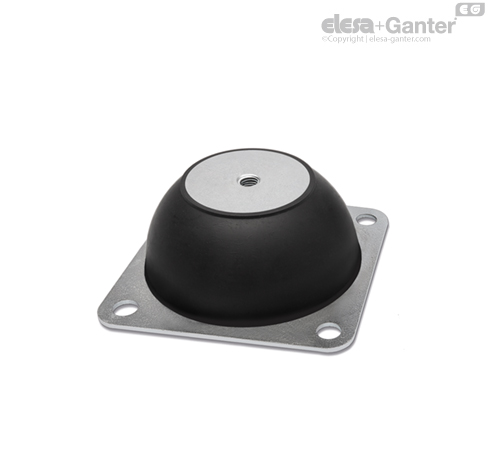

DVE vibration-damping elements are composed of two metallic elements joined together by a rubber anti-vibration body. A round element with a boss with a threaded pass-through hole constitutes the base for fixing the vibrating machine. Another element, oval or square shaped, constitutes the flange for fastening to the floor.

Generally used for applications with rotary machines that do not present big dynamic imbalances, where elasticity is required both vertically and transversely.

They are therefore very suitable for use with compressors, fans, vibrating feeders, rotary pumps or electric motors.

Vibrations can cause:

• nepravilno delovanje in skrajšanje življenjske dobe stroja in/ali strojev v bližini;
• noise and thus also damage to human health.

Load diagrams for each single code are available on request.

See Tehnični podatki in smernice za izbiro.

Posebne verzije na zahtev

• AISI 304 stainless steel elements and NR natural rubber with hardness 40 tolerance ± 5 Shore A.
• Executions with AISI 316 stainless steel mounting flange, base plate and tapped boss.
• Executions with NR natural rubber with different hardness.
