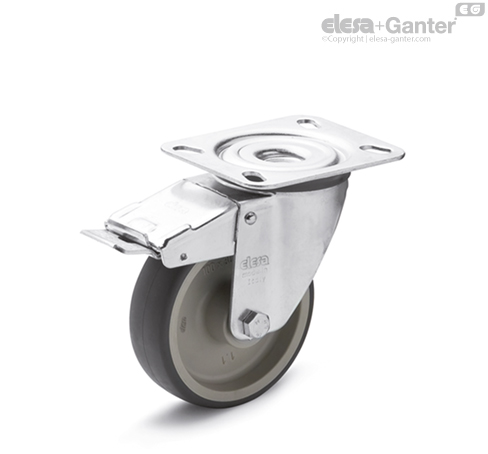

RE.G1-SBF-N Castors with steel bracket Turning plate bracket, with brake, steel

Tekalna obloga

Grey anti-trace thermoplastic wheel, hardness 85 Shore A.

Telo kolesa

Polypropylene-based (PP) technopolymer.

Rolling action

Hub with pass-through hole.

Fiksni nosilec s ploščo

Zinc-plated steel sheet, the bracket is designed to withstand loads up to 1800N.

Vrtljivi nosilec s ploščo

Zinc-plated steel sheet, the bracket is designed to withstand loads up to 1800N. Dvojni kroglični ležaj in neposreden stik med ploščo in obročem krogličnega ležaja z vgrajenim zatičem zagotavlja odlično manevrirnost. Ne zahteva vzdrževanja.

Sestavljeno iz (glejte sliko 1):

1. fitting plate: electrolytically zinc-plated steel plate;
2. fork: electrolytically zinc-plated steel plate;
3. ball race ring: electrolytically zinc-plated steel plate;
4. osrednji zatič: vdelan v ploščo, hladno oblikovane prirobnice;
5. vrtilni sistem: dvojni kroglični ležaj s podmazovanjem z mastjo;
6. tesnilo proti prahu: tehnopolimer, temno siva barva, RAL 7015, na voljo samo za izvedbe SBL in SBF.

Zavora

Popolna zavora, ki blokira kolo in vrtenje ohišja. Optimizirane dimenzije in uvlačljivi pedal zagotavljata najmanjšo porabo prostora in kar najlažjo aktivacijo. Hardened carbon steel spring.

Standardne verzije

• PBL: fixed plate bracket, without brake.

• SBL: turning plate bracket, without brake.

• SBF: turning plate bracket, with brake.

• FBL: turning plate bracket and centre pass-through hole, without brake.

• FBF: turning plate bracket and centre pass-through hole, with brake.
