Izvedba
Ohišje kolesa
Phenolic based (PF) Duroplast monolithic wheel, resistant to temperatures up to 300°C.
Trdota 92 Shore D ±5.
Pesto
Hub with stainless steel tube and PTFE bosses.
Vrtljivi nosilec s ploščo

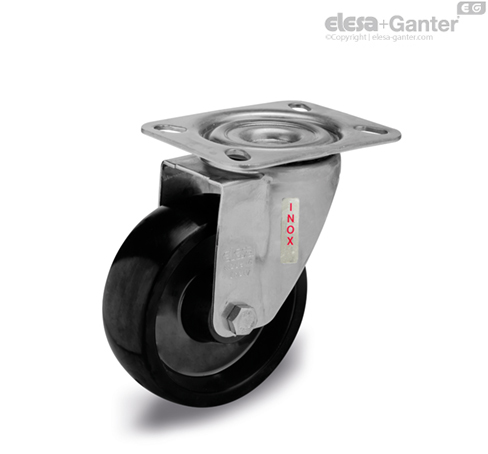

AISI 304 stainless steel sheet, the bracket is designed to withstand loads up to 2000N. The presence of two ball turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability. Ne zahteva vzdrževanja. Sestavljeno iz (glejte sliko 1):
- Plošča: pocinkana pločevina iz plemenitega jekla 1.4301
- vilice: pločevina iz plemenitega jekla AISI 304;
- Držalni obroč krogličnega ležaja: pocinkana pločevina iz plemenitega jekla 1.4301;
- osrednji zatič: vdelan v ploščo, hladno oblikovane prirobnice;
- rotation system: dual ball ring, high temperature grease-lubricated;
- Obroč za zaščito pred prahom: termoplast, temno siva RAL 7015
Standardne izvedbe
- SBL: krmilni valj brez zavore.
- FBL: krmilni valj s sredinsko prehodno izvrtino, brez zavore
Opomba
Aplikacije
Being resistant to high temperatures, RE.F7-SST-N-HT castor is particularly suitable for use in food industries and cooking ovens, especially in the baking sector.
