Izvedba
Telo kolesa
Termoplast (poliamid, PA).
Pesto
Pesto s krogličnim ležajem, idealna rešitev za velike obremenitve in neprekinjeno uporabo
Fiksni nosilec s ploščo
Electrolytically zinc-plated electro-welded steel. The bracket is designed to withstand loads up to 9000N and ensures capacities that make it suitable for heavy industrial applications and for severe conditions of use, such as impact and high speeds.

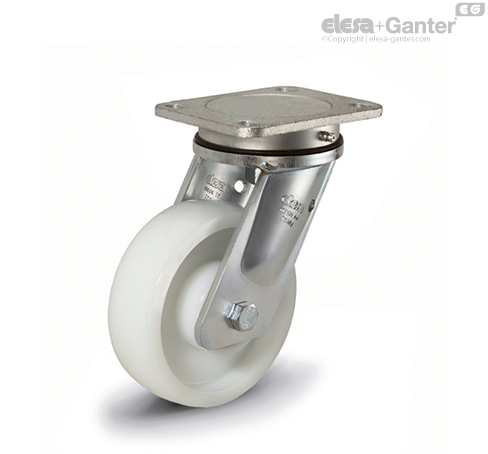

Vrtljivi nosilec s ploščo
Ohišje iz pocinkane jeklene pločevine. The presence of an axial bearing and a conical bearing ensures excellent manoeuvrability also at full load and increases the resistance of the bracket against side impact. It is equipped with lubricator and anti-loosening system of the locking nut. The bracket is designed to withstand loads up to 9000N. Suitable for heavy industrial applications and for severe conditions of use, such as impact and high speeds.
It consists of (see fig. 1):
- Plošča: kovano jeklo s pocinkanimi vodilnimi zatiči
- Krmilne vilice: pocinkane
- Ležaji: aksialni in stožčasti ležaji
- Sistem za mazanje
- Zaklepna matica z varovalom navoja
Zavora
Dvojni zavorni učinek s hkratno blokado kolesa in ohišja. Zavora je preprosta in učinkovita za uporabo: aktivira in sprosti se s preprostim potiskom od zgoraj navzdol na konici dveh ločenih pedalov, kar zagotavlja vrhunsko udobje pri manevriranju. Zavorna moč se nastavi z imbus vijakom M8.
Standardne izvedbe
- PSL-WH: fiksni nosilec s ploščo, brez zavore.
- SSL-WH: vrtljivi nosilec s ploščo, brez zavore.
- SSF-WH: vrtljivi nosilec s ploščo, z zavoro.
Opomba
Aplikacije
Suitable for heavy industrial applications, due to loads up to 9000N. Odlična odpornost proti obrabi in raztrganju. Za dodatne informacije glejte RE.F8-.
