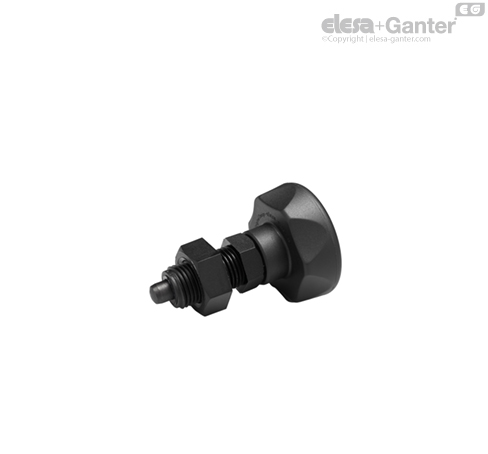

PMT.110-AK
PMT.110
Zaskočni sorniki
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
78711-R,20
78710-R,10
78712-R,50
ozGN 300-30-B5-SW;60
GN 612-5-M12x1,5-A;40
DIN 172-B10,5-20-A;50
ISO 8675-M8x1-04-BT;10
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Black-oxide hardened steel or AISI 303 stainless steel.
Luknjo za zaskočni zatič je treba izvesti s toleranco –0,08.
Termoplast (poliamid, PA), ojačan s steklenimi vlakni, črno-siva, matiran.
Plemenito nerjaveče jeklo 1.4319
Dodatki: Na voljo ločeno (glejte tabelo).
Make sure that no machining residues are left on the threaded hole for the tightening of PMT.110 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
SUPER-technopolymer product based on ELESA technology, dimensions of the threaded body and plunger according to GN 612 standards as agreed with Otto Ganter GmbH Co. KG.
ELK knob type: ELESA original design.
