Izvedba
Navojno ohišje
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Vijak
Black-oxide hardened steel or AISI 303 stainless steel.
Suggested tolerance H7 for matching hole.
Lever
Self-lubricating glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Vzmetni
Plemenito nerjaveče jeklo 1.4319
Protimatica
- NTT: special glass-fibre reinforced polyamide based (PA) SUPER-technopolymer.
Dodatki: Na voljo ločeno (glejte tabelo).
Standardne izvedbe

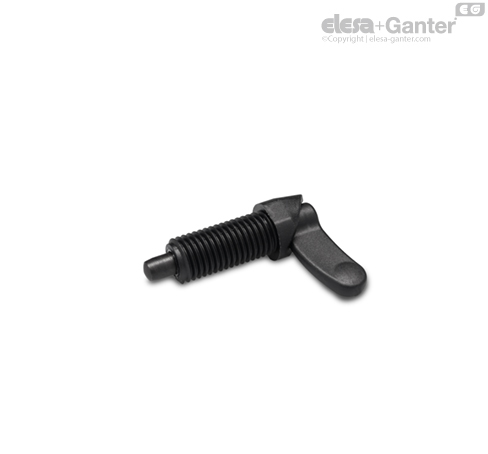

- PMT.200-A: black-oxide steel plunger, without locking nut.
- PMT.200-AK: black-oxide steel plunger, with locking nut (supplied not assembled).
- PMT.200-SST-A: AISI 303 stainless steel plunger, without locking nut, not magnetic.
- PMT.200-SST-AK: AISI 303 stainless steel plunger, with locking nut (supplied not assembled), not magnetic.
Navodila za sestavljanje
Navodila za sestavljanje
Make sure that no machining residues are left on the threaded hole for the assembly of PMT.200 indexing plunger (see fig. 1). Do not make any chamfering in the hole (see fig. 2).
SUPER-technopolymer product based on ELESA technology, dimensions of the threaded body and plunger according to GN 612 standards as agreed with Otto Ganter GmbH Co. KG.
Knob: Elesa original design.
