Specification
Types
- Type APV: Forked clamping arm, with two flanged washers

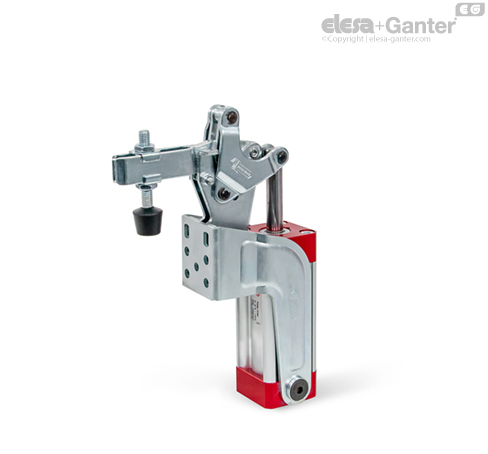

- Type CPV: Forked clamping arm, with two flanged washers and clamping screw GN 708.1
- Type EPV: Solid clamping arm, with clasp for welding
Coding
- Coding M: Magnetic piston
Sheet metal parts
Case-hardened steel C10
Zinc plated, blue passivated
Bearing rivets
Case-hardened
Air cylinder bearing pins
Case-hardened
Double-action air cylinder
Max. pressure 6 bar
All moving parts
Lubricated with special grease
Clamping screw GN 708.1, type A
- Steel, zinc plated, blue passivated
- Rubber thrust pad 85 Shore A
Information
The clamping principle of toggle clamps GN 862 is identical in construction and dimensions to the manually operated vertical toggle clamps GN 812.
To ensure an extended life of the mechanical parts as well as the air cylinders the operating pressure should not exceed 6 bar and a compressed air maintenance unit should be installed upstream.
Hitri vpenjalniki GN 862 have a permanent magnet integrated into the piston. In conjunction with sensors GN 3380, it is possible to detect the end position, such as for implementing machine controls.
