Izvedba
Balls
Stainless Steel AISI 420C
Vzmetni
Stainless Steel AISI 631
temperature resistant up to 250 °C
Informacije

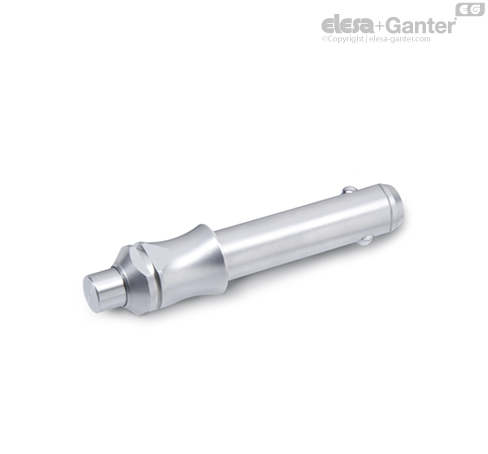

Stainless Steel-Ball lock pins GN 113.4 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.
By pressing the spring loaded push button both balls are unlocked and by releasing it the balls are locked again.
Ball lock pins GN 113.4 are renowned for their compactness. The eye ring is enclosed unmounted.
The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
Nosilnost sornikov s kroglično zaporo / zapornih sornikov
Informacije
Nosilnosti, navedene v tabeli za dvostransko strižno trdnost (sila loma), so bile izračunane ali teoretično določene v skladu s standardom DIN 50141.
Pri tem je bil prizadeti presek sornika S obravnavan v dveh strižnih ravninah do zloma, kot je prikazano na sosednji skici.
Podatki o nosilnosti so nezavezujoče smernice, ki izključujejo kakršno koli odgovornost. Na splošno ne predstavljajo zagotovila lastnosti.
Ali je izdelek primeren za določeno uporabo, mora v posameznem primeru določiti uporabnik. Na navedene vrednosti lahko vplivajo vplivi okolja.
Pri projektiranju je treba upoštevati ustrezen varnostni faktor.
Nosilnost F v kN ≈ dvostranska strižna trdnost v skladu z DIN 50141 (sila loma)
