Izvedba
Oblika
Identification
- SC: with key (keyed alike)
- SU: with key (keyed differently)
Plunger pin / Pawl
Plemenito jeklo 1.4305 NI
L-ročaj
Plastic (Polyamide PA)
- temperature resistant up to 80 °C
Lock mechanism
Zinc die casting / Stainless Steel
Key (two pieces)
Steel, nickel plated
Informacije

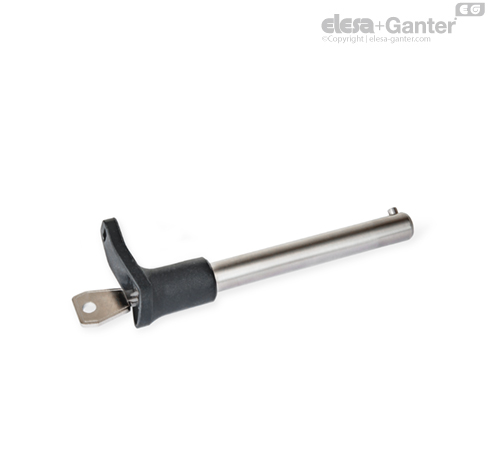

Stainless Steel-Locking pins GN 314 with L-Handle and key are used for quick fixing, connecting and locking of various jig and fixture systems without the need for tools. Turning the key 180° moves the pawl at the front end of the pin to engage the axial locking of the inserted pin. After locking, unauthorized removal is no longer possible. The key can be removed in both end positions.
The key can be removed in the end positions. Locks with coding SC are keyed alike, allowing each lock to be operated with the same key. Locks with coding SU have different locks with 68 different lock versions and correspondingly numbered keys.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
