Izvedba
Knob / Push button / Slide
- Temperature resistant up to 80 °C
Zatič
Plemenito jeklo 1.4305
Zapah
Stainless Steel AISI 304 (sheet metal)
Pritisna vzmet
Stainless steel AISI 301
Informacije

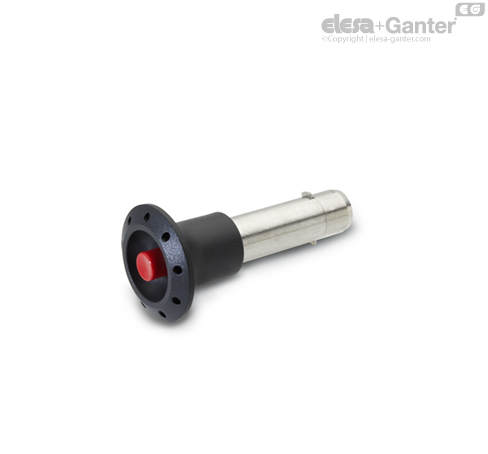

Locking pins with axial lock GN 114.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.
The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
