Main specifications
Lever body
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.
Lever arm
Matte chrome-plated steel with cylindrical handle I.280- in Duroplast.
Self-adhesive front plate
Matte anodised aluminium to be fitted after the assembly of the lever.
Standard executions

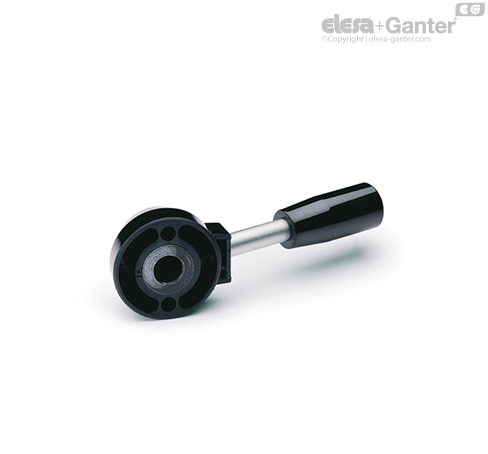

- LBR-A: black-oxide steel boss, H7 reamed hole.
- LBR-N: without boss, with plain hole and flat face.
LBR.45 N and LBR.54 N: flat face opposite to the arm.
LBR.75 N: flat face in correspondance of the arm.
General information
Manoeuvre angle limitation
A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
Special executions on request
Special executions on request
- Different arm lengths and handle shapes.
- Front plate with words, marks, symbols, graphics.
